DMM 30 KN Boa HMS Carabiner

DMM

DMM 30 KN Boa HMS Carabiner
₹2,499
Taxes included. Shipping calculated at checkout.
Gate Type
Description

The Boa is hot forged from 14mm aluminium bar to give it the 30kN major axis rating required for rescue loads. The massive curved basket copes with even the busiest rigging set up and still allows devices to settle comfortably. The impressive size and ergonomics ensure it can be operated by even the largest hands with the chunkiest of gloves.

DMM's patented Taperlock closing mechanism increases gate push-in and cross gate strength using a special flared profile on the nose of the carabiner, as well as allowing a snag free connection for your ropes, slings and devices.

Features
  • Large HMS shape big enough to fit multiple ropes or connections
  • 14mm loading surface for increased wear resistance
  • Keylock clean nose for snag free connection
  • Easy to use with gloved hands
Locking Gate Type
Brochures
Details
More Information

Locking Gate Types:

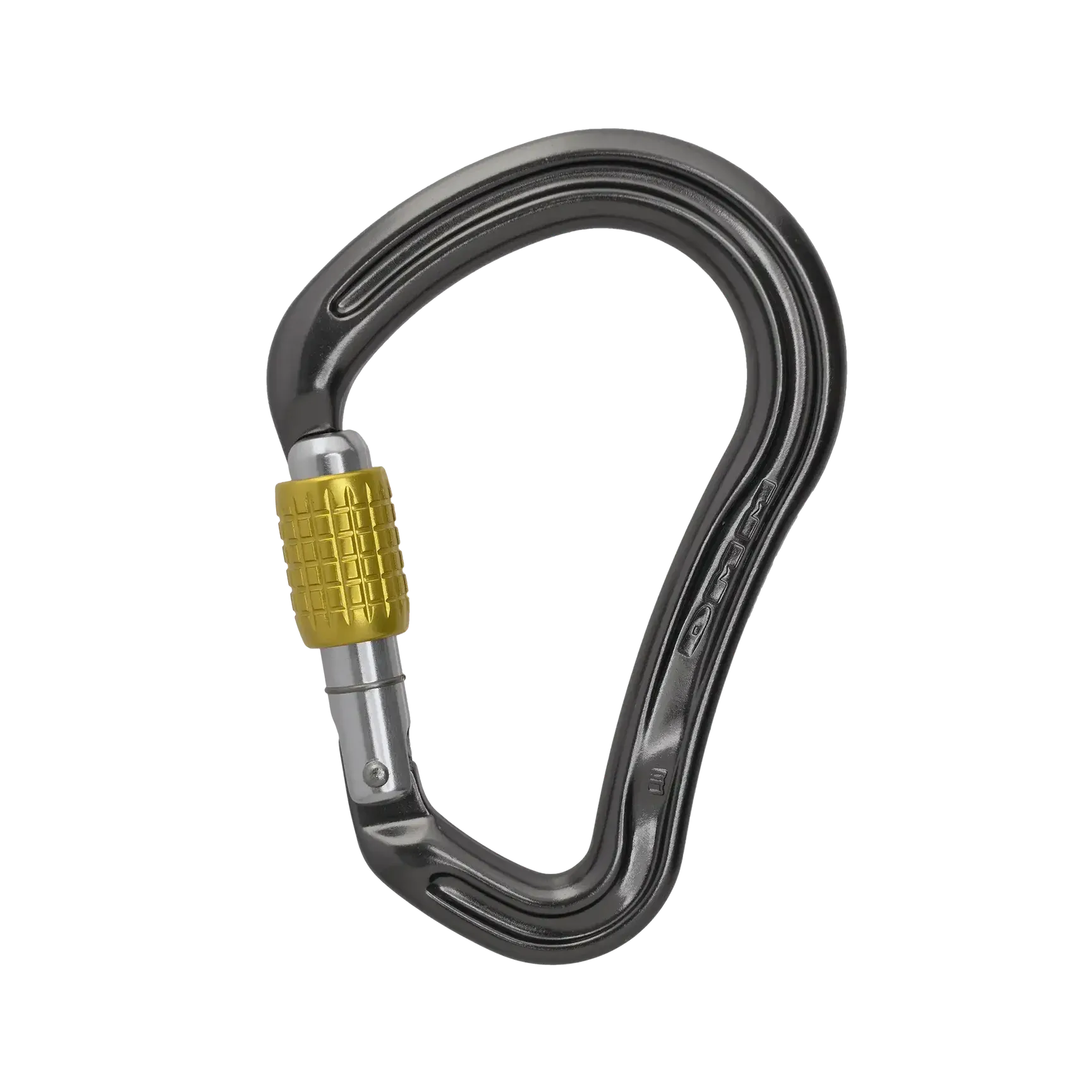

Screwgate : Manual locking gate requiring screwing/unscrewing of the barrel to lock/unlock.

Kwiklock : Auto-locking gate requiring two distinct actions to open.

Locksafe : Auto-locking gate requiring three distinct actions to open.

Durolock : Auto-locking gate requiring four distinct operations to open. Force must be maintained throughout or the gate returns to safe (locked).

Kwiklock ANSI : Same gate action as Kwiklock but the connector is also required to exceed 16kN in minor axis, side load and gate face tests.

Locksafe ANSI : Same gate action as Locksafe but the connector is also required to exceed 16kN in minor axis, side load and gate face tests.

Shipping Info
Applications
Technology
Tech specifications
Locking Gate Type Dimensions Weight MBS (Major Axis) MBS (Minor Axis) MBS (Gate Open) Gate Opening Certification
Screwgate 83 x 122mm 95g 30kN 12kN 9kN 24mm EN362:2004 B
EN12275:2013 B/H
UIAA121:2009

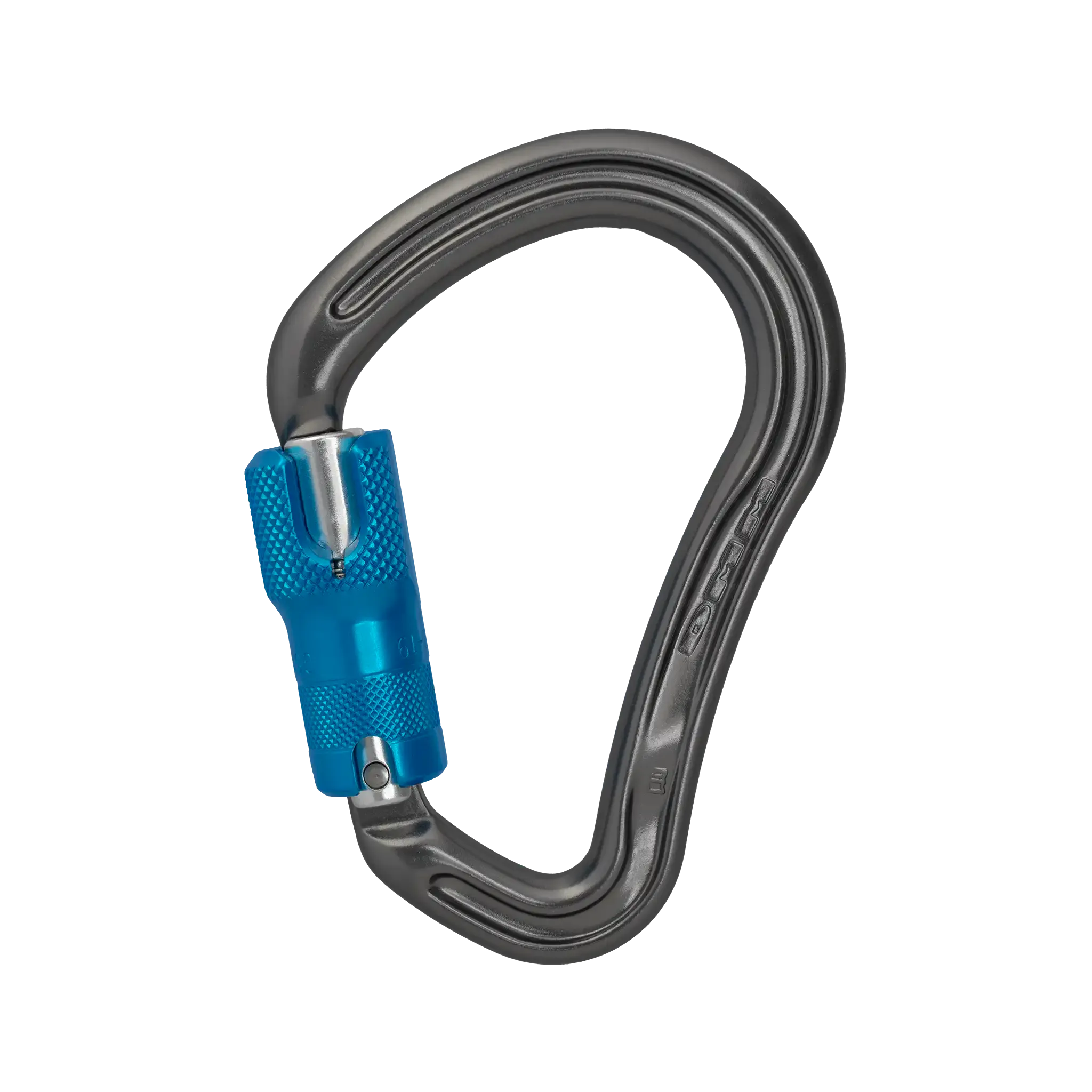

Kwiklock ANSI 83 x 122mm 115g 30kN 16kN 9kN 19mm EN362:2004 B
EN12275:2013 B/H
ANSI/ASSE Z359.12-2019
CAN/CSA Z259.12-16

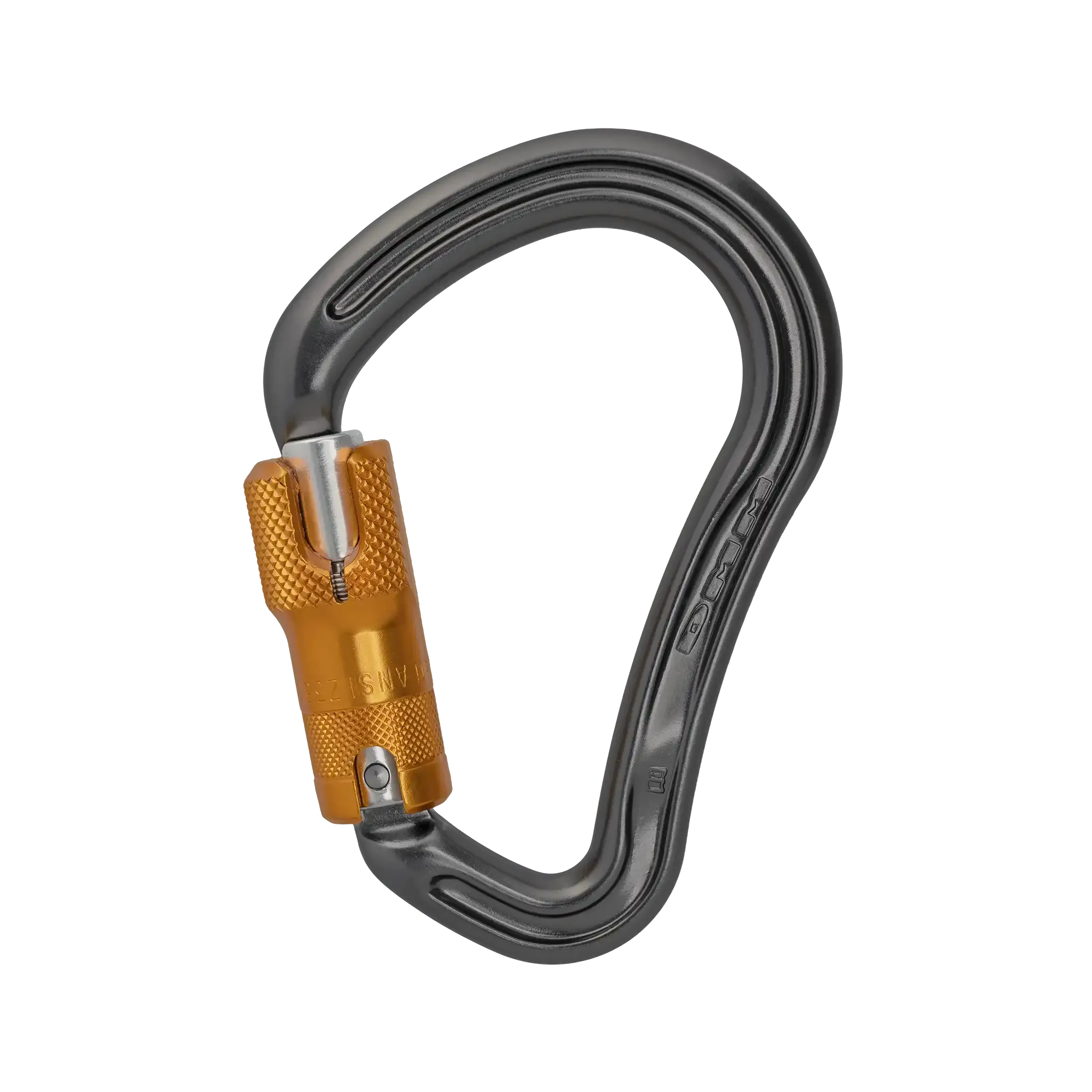

Locksafe ANSI 83 x 122mm 115g 30kN 16kN 9kN 19mm EN362:2004 B
EN12275:2013 B/H
ANSI/ASSE Z359.12-2019
CAN/CSA Z259.12-16

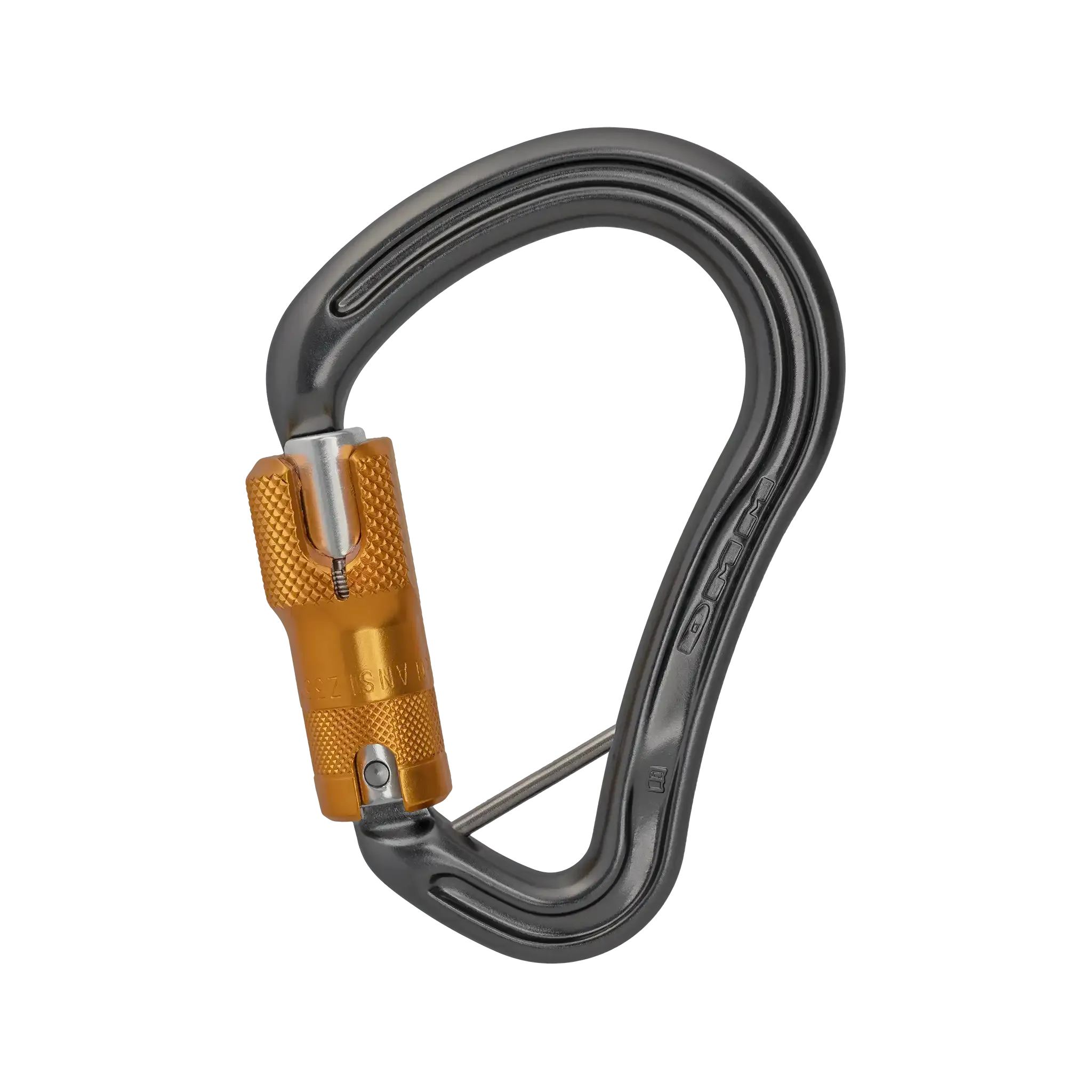

Locksafe ANSI w/Captive Bar 83 x 122mm 115g 30kN 16kN 9kN 19mm EN362:2004 B/T
EN12275:2013 B/H/T
ANSI/ASSE Z359.12-2019
CAN/CSA Z259.12-16
