Description

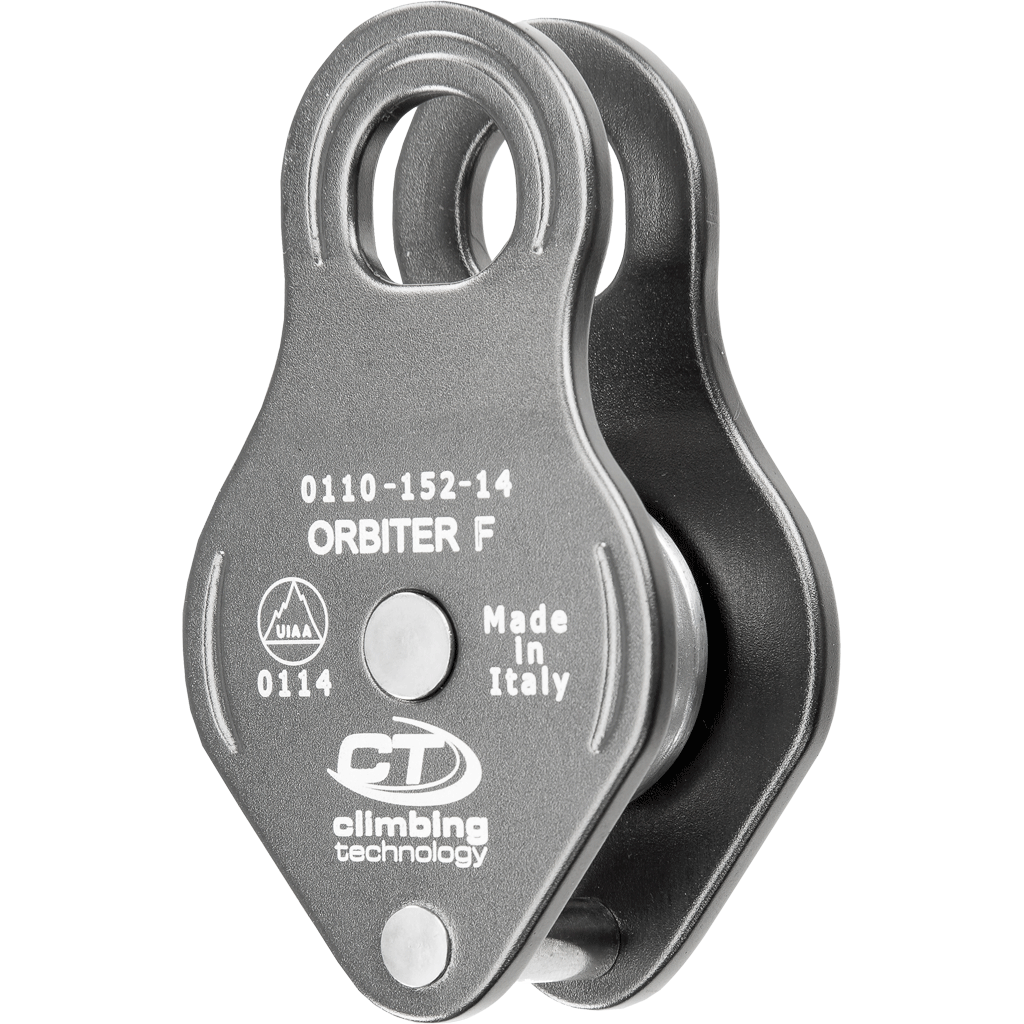

Pulley with fixed side plates that allow the insertion of any connector.

Features

• Made in anodized light alloy
• Sheaves mounted on self-lubricating bushings
• For use with ropes Ø ≤ 13 mm
• Designed for hauling systems and deviations

Locking Gate Type

Brochures

Details

More Information

Shipping Info

Applications

Technology

Tech specifications

Dimensions	Rope diameter	Breaking load	Work load limit	Weight	Efficiency	Certification
48 x 85 x 29 mm	≤13mm	30 kN (15 kN on each)	5 kN (2.5 kN on each)	100 g	80 %	EN 12278:2007
