DMM AmericanO ANSI Carabiner
  • DMM AmericanO ANSI Carabiner
  • DMM AmericanO ANSI Carabiner
  • DMM AmericanO ANSI Carabiner
DMM AmericanO ANSI Carabiner

DMM

DMM AmericanO ANSI Carabiner
₹2,799
Taxes included. Shipping calculated at checkout.
Gate Type
Description

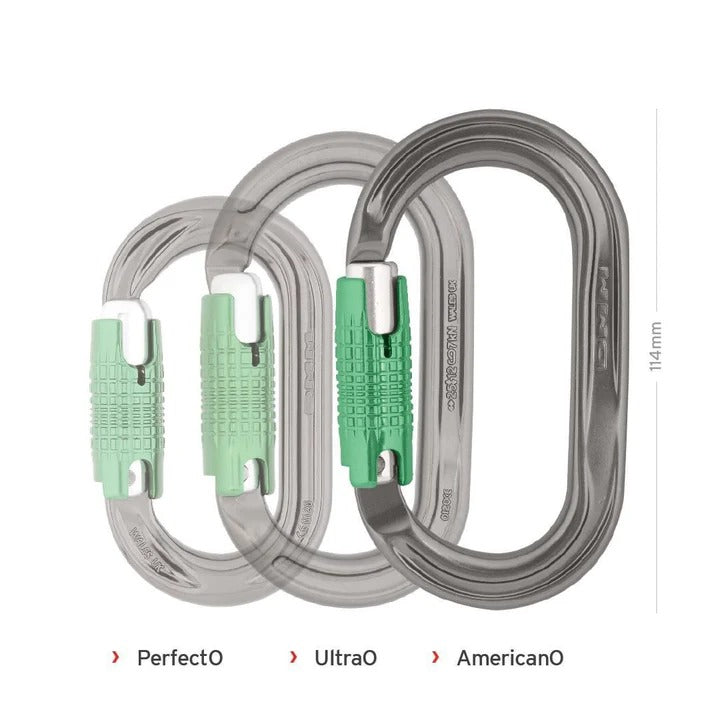

An oval that packs a punch. Larger than our classic Ultra O, it shares the same stable loading characteristics but with more volume when required.

The AmericanO is also DMM's first ANSI (American National Standards Institute) compliant true oval connector. It is especially suited for industries that apply this standard. A DMM oval for all applications.
Features
  • Our first ANSI compliant oval connector
  • True oval shape for predictable loading
  • Large size for use with gloves
  • Locksafe and Kwiklock gate option
Locking Gate Type
Brochures
Details
More Information

Locking Gate Type:

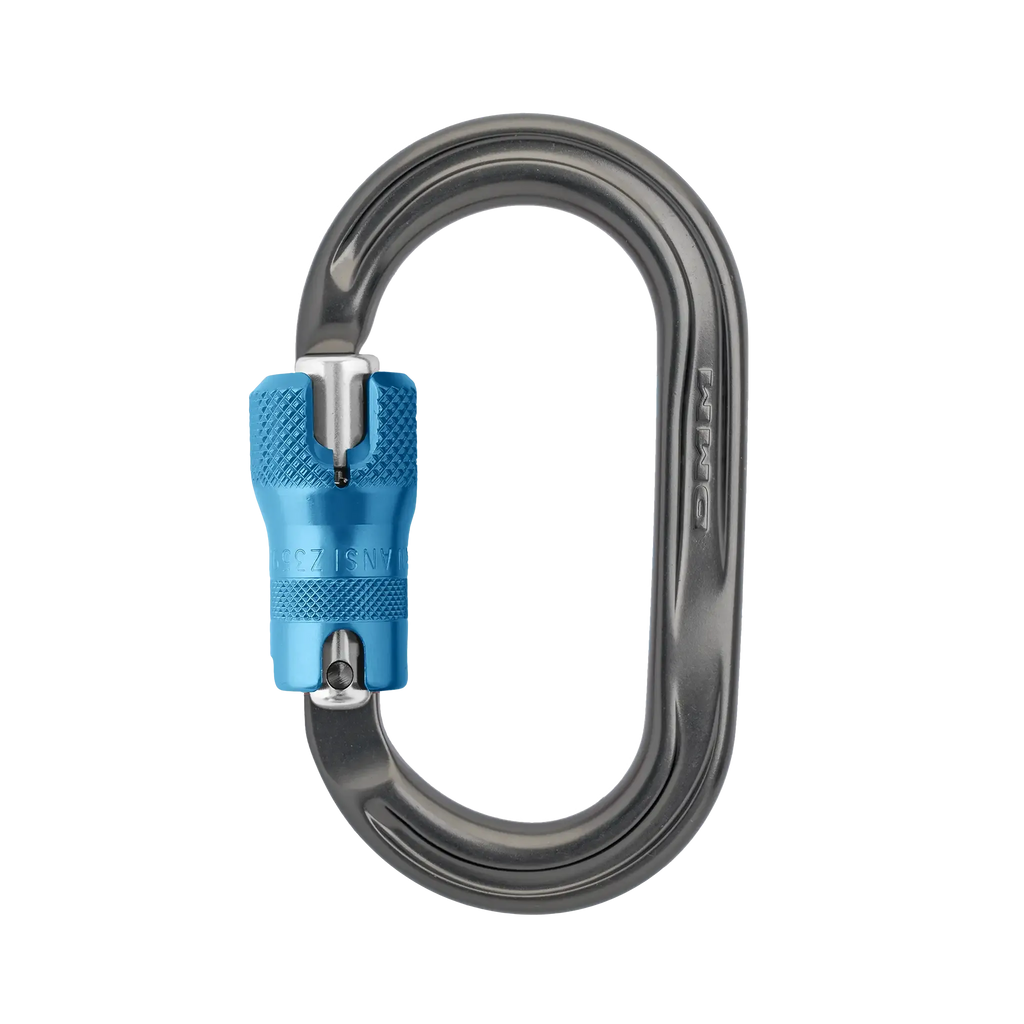

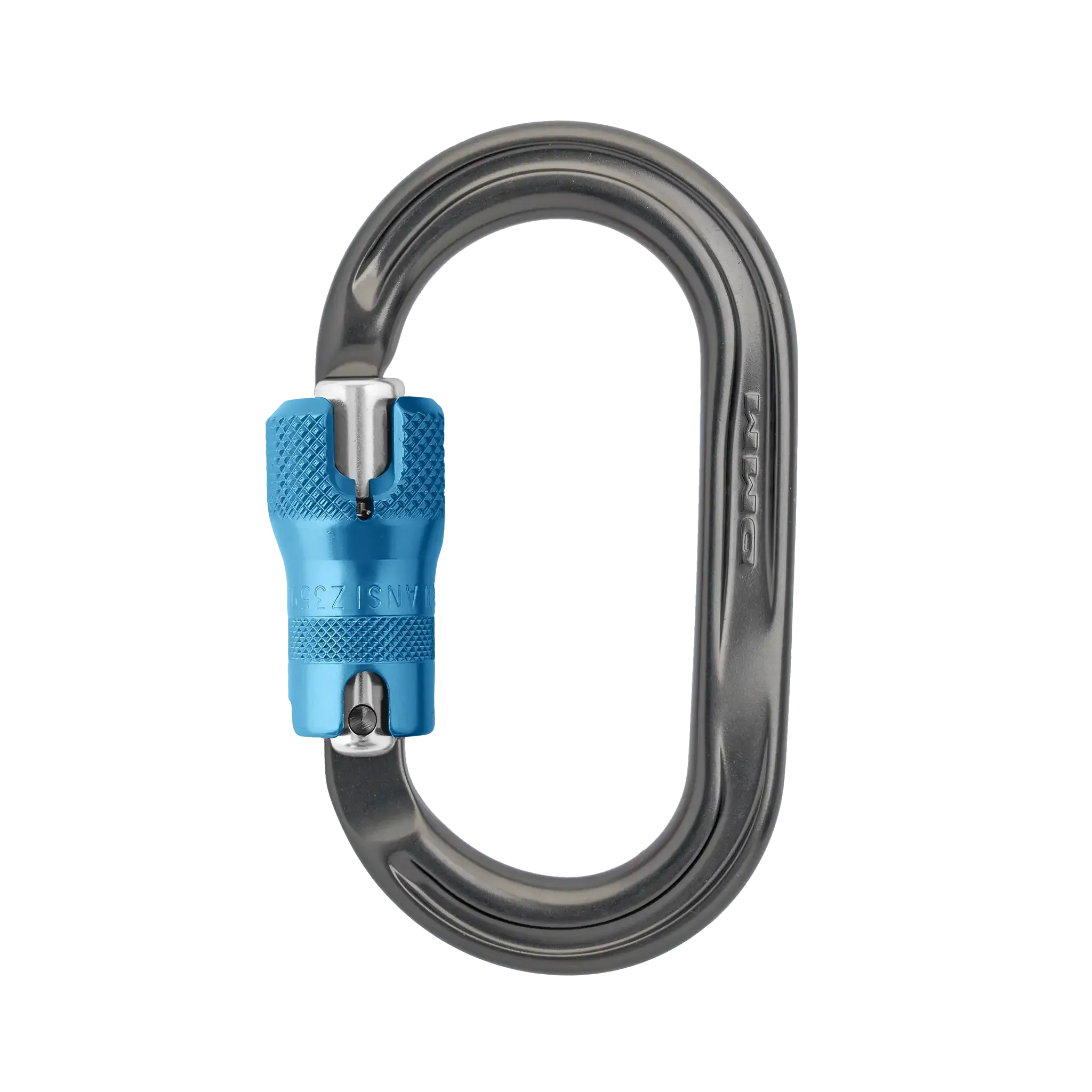

Kwiklock : Auto-locking gate requiring two distinct actions to open.

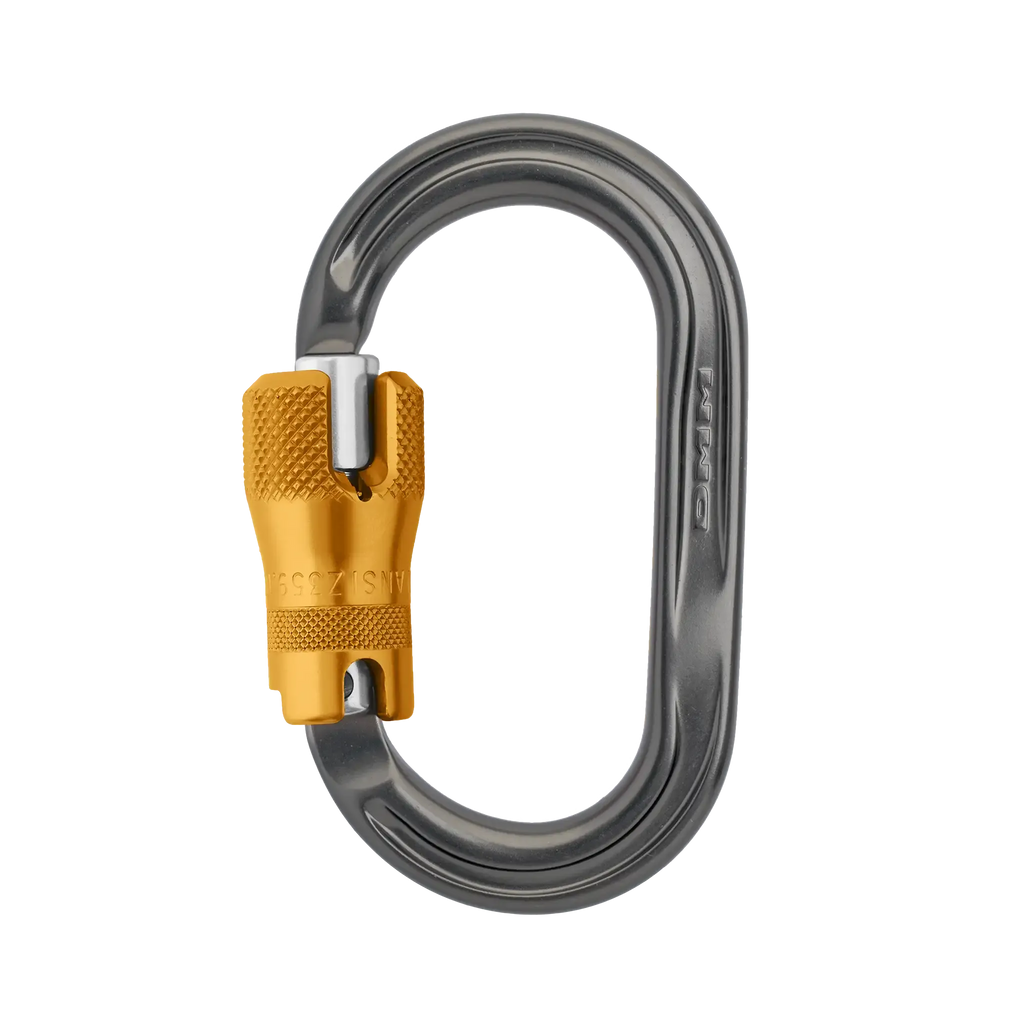

Locksafe : Auto-locking gate requiring three distinct actions to open.

Kwiklock ANSI : Same gate action as Kwiklock but the connector is also required to exceed 16kN in minor axis, side load and gate face tests.

Locksafe ANSI : Same gate action as Locksafe but the connector is also required to exceed 16kN in minor axis, side load and gate face tests.
Shipping Info
Applications
Technology
Tech specifications
Locking Gate Type Dimensions Weight MBS (Major Axis) MBS (Minor Axis) MBS (Gate Open) Gate Opening Certification
Kwiklock ANSI 71 x 114mm 102g 25kN 16kN 7kN 21mm EN362:2004 B
EN12275:2013 B
ANSI/ASSE Z359.12-2019
CAN/CSA Z259.12-16
Locksafe ANSI 71 x 114mm 101g 25kN 16kN 7kN 18mm EN362:2004 B
EN12275:2013 B
ANSI/ASSE Z359.12-2019
CAN/CSA Z259.12-16
