DMM Focus Swivel

DMM

DMM Focus Swivel
Sale price  ₹6,749 Regular price  ₹8,999
Taxes included. Shipping calculated at checkout.
Product Type
Description

Our Compact Swivel and Shackle range allow you to manage torsion in a space-saving and versatile form factor. The interchangeable Compact Shackles provide connection options to suit your intended use.

Retro-fittable swivel convertors. The two way locking spindle in the shackle allows connection to fixed loops such as wire strops, rigging plates, and harness bridges. The fixed eye can be clipped, spliced in, swaged in, etc. as required. Available in two shackle sizes depending on the loading requirements. The small D shaped shackle keeps single attachments neat and predictable whereas the increased size of the bow-shaped shackle allows complex set ups to be achieved by catering for loading across the shackle.

Features
  • Textile-friendly
  • Hot forged aluminium shackles and CNC'd swivels
  • User maintainable grease port for bearing longevity
  • Double locking high tensile stainless steel axles for durability
  • Roller thrust bearings for smooth efficiency
  • Shackle uses 4mm and 2mm Allen keys to ensure secure locking
Locking Gate Type
Brochures
Details
More Information
Shipping Info
Applications
Technology
Tech specifications
Product Type MBS WLL Dimensions Weight Certification

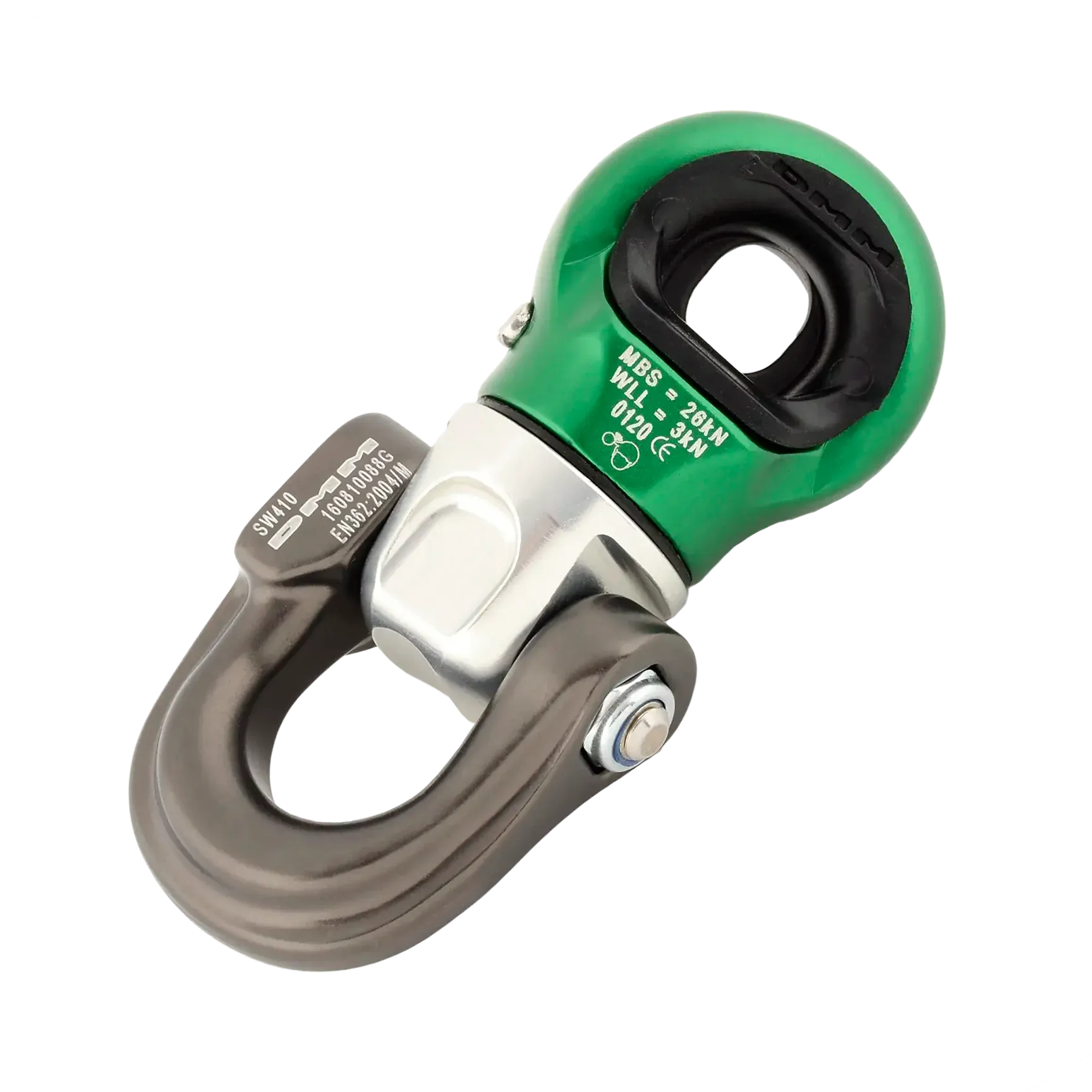

Focus D  26kN 3kN 76.5 x 34.5 x 22mm 64g RFU PPE-R/11.135 Version 3

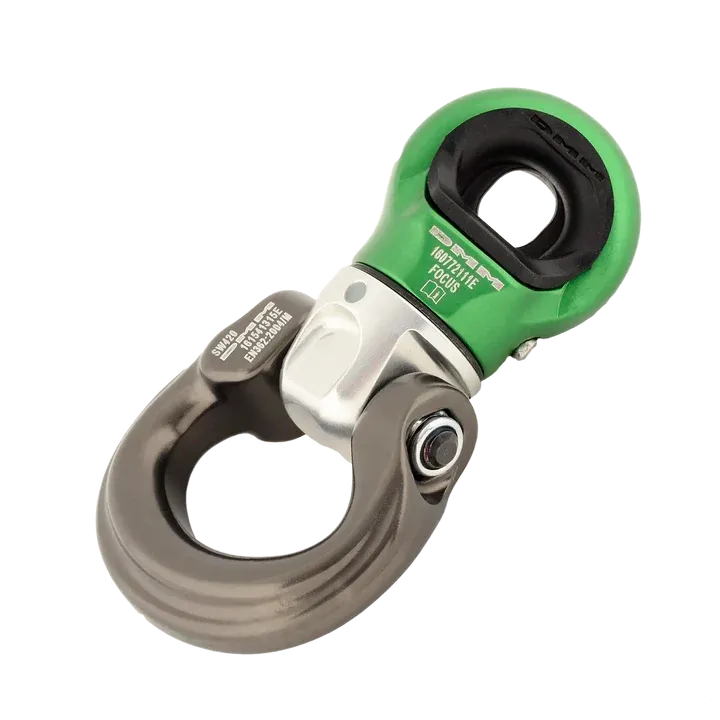

Focus Bow 26kN 3kN 82 x 47.5 x 22mm 72g RFU PPE-R/11.135 Version 3
