DMM Rhino HMS Locking Carabiner

DMM

DMM Rhino HMS Locking Carabiner
₹2,099
Taxes included. Shipping calculated at checkout.
Gate Type
Description

The Rhino HMS carabiner tackles cross loading head on! The horn feature on the leading edge of the spine significantly reduces the possibility of cross loading with rigging, belay & rope devices, and pulleys by restricting the rotation of devices, whilst the clean nose design provides snag-free gate entry. The smooth and robust top bar is contrasted by our signature I-Beam construction on the non-rope bearing surfaces.

Features

HMS for space and rigging HMS connectors are pear shaped and often have similar characteristics to ovals in how they deal with loaded components, i.e. they also allow devices and connectors to self-centre. Moreover, the extended basket allows for additional component connection. Knots in a system such as an Italian hitch can rotate easily between taking in and paying out (even with larger diameter ropes). In general, HMS connectors are slightly oversized to accommodate the added volume of bigger ropes and to feel secure in a gloved hand.

Keylock clean nose for snag free connection DMM's patented 'Taperlock' closing mechanism increases gate push-in and cross gate strength using a special flared profile on the nose of the carabiner, as well as allowing a snag free connection for your ropes, slings and devices.

Wide, full radius basket provides a rope and device friendly operation

Pronounced horn and flat base encourage optimal loading The top of the Rhino's spine prevents assisted braking devices and rope controllers from twisting around the spine and cross-loading the carabiner. The Rhino's flat base helps it sit in the belay loop, and works with the horn to help the Rhino orientate correctly.

Locking Gate Type
Brochures
Details
More Information

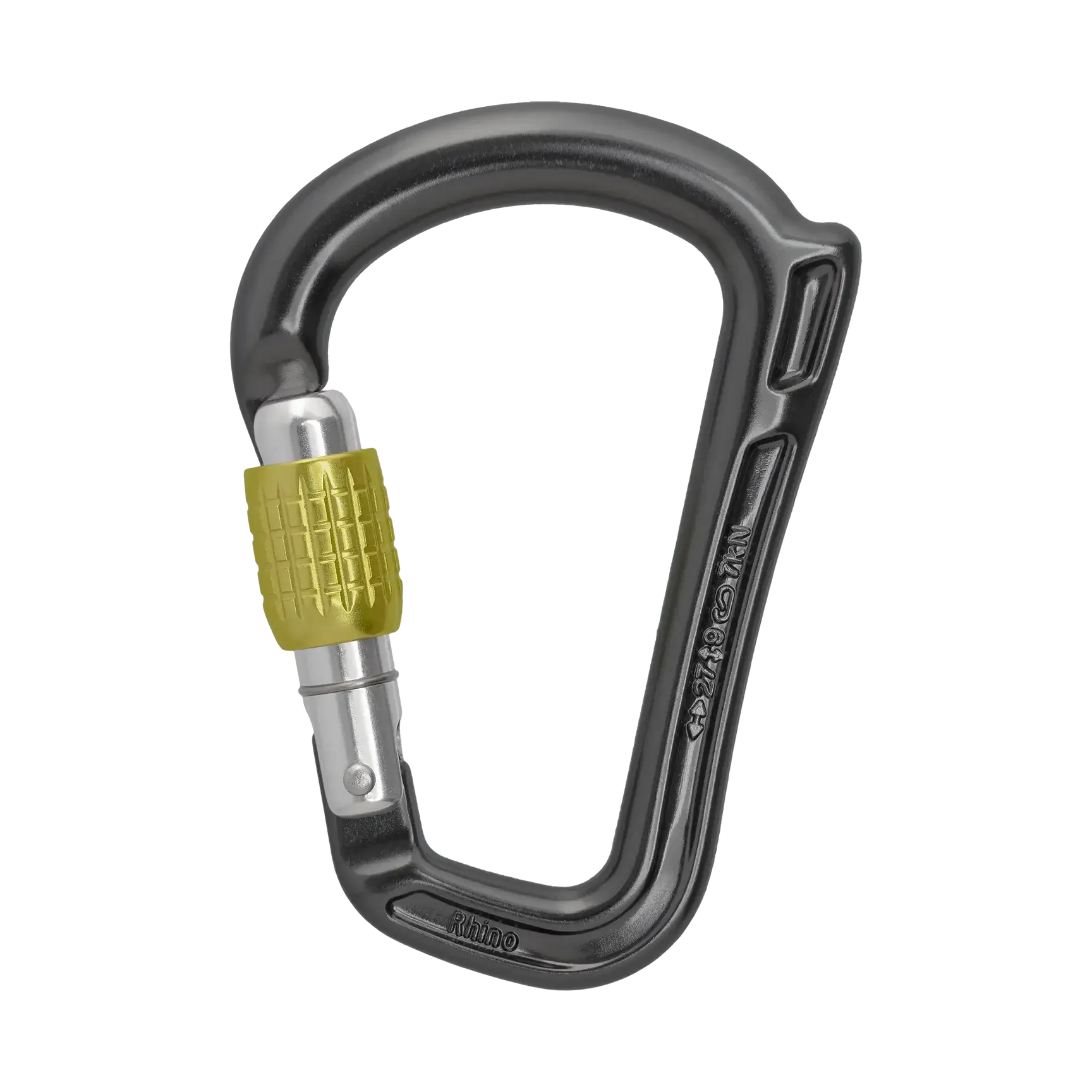

Screwgate : Manual locking gate requiring screwing/unscrewing of the barrel to lock/unlock.

Kwiklock : Auto-locking gate requiring two distinct actions to open.

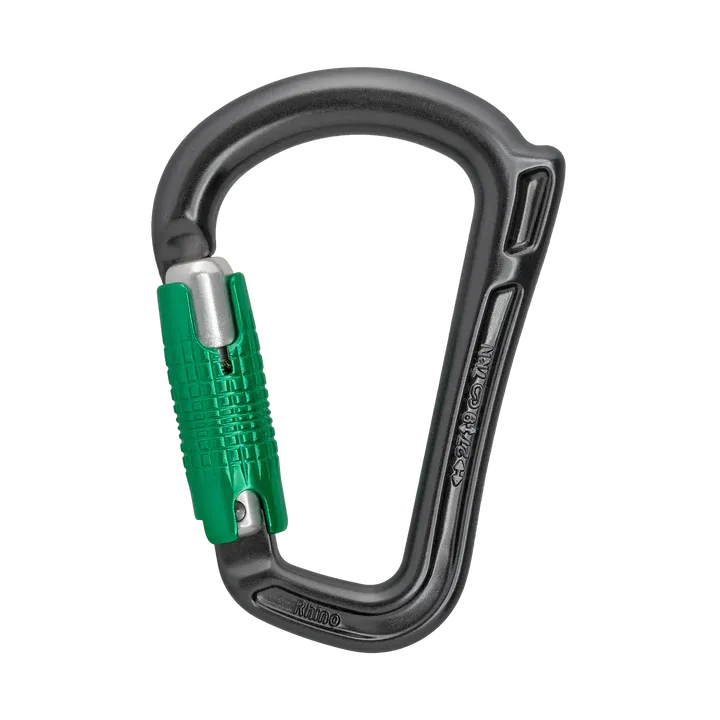

Locksafe : Auto-locking gate requiring three distinct actions to open.

Shipping Info
Applications
Technology
Tech specifications
Locking Gate Type Dimensions Weight MBS (Major Axis) MBS (Minor Axis) MBS (Gate Open) Gate Opening Certification
Screwgate 75 x 100mm 73g 27kN 9kN 7kN 20mm EN362:2004 B
EN12275:2013 B/H
Kwiklock 75 x 100mm 81g 27kN 9kN 7kN 19mm EN362:2004 B
EN12275:2013 B/H
Locksafe 75 x 100mm 81g 27kN 9kN 7kN 19mm EN362:2004 B
EN12275:2013 B/H
