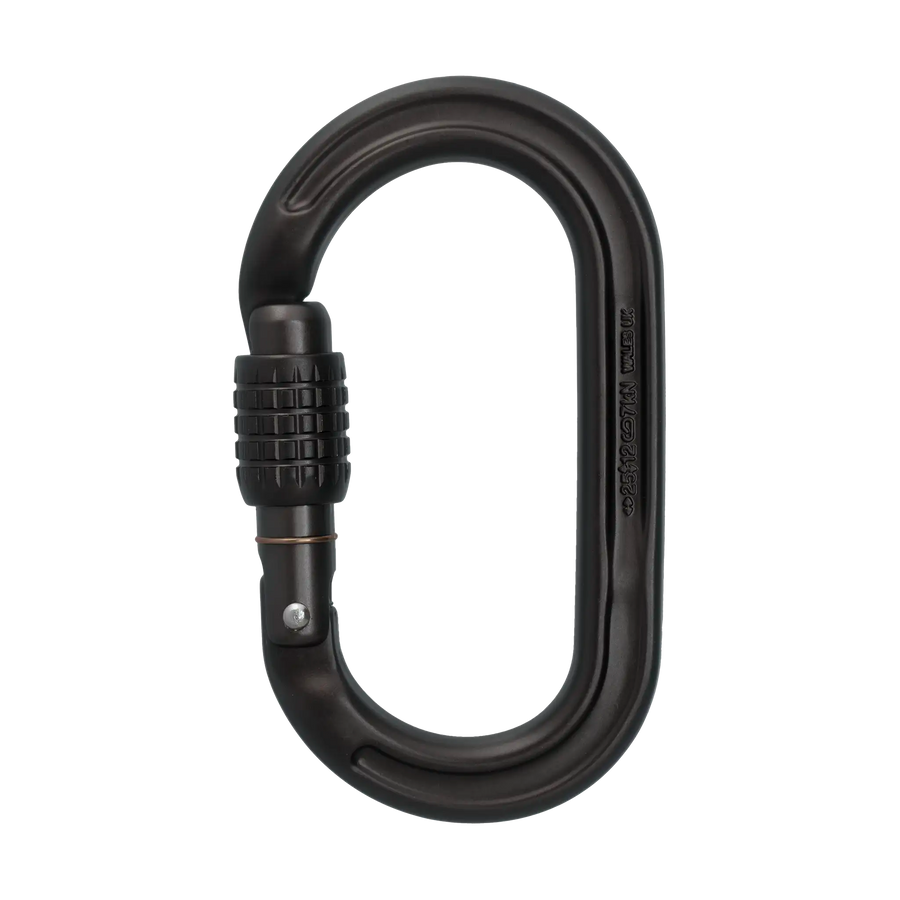

DMM Ultra O Screwgate Carabiner

DMM

DMM Ultra O Screwgate Carabiner
₹2,099
Taxes included. Shipping calculated at checkout.
Description

An ultimate all-round connector, the Ultra O's symmetrical rope baskets are ideal for assisted breaking devices, pulleys, swivels and shackles. They also give stable loading characteristics, as attachments can self-centre under load with minimal movement from the carabiner.

Features

Oval for symmetry; shape allows central positioning of devices Oval connectors are popular in rope access and tree care situations where multiple connectors, slings, ropes or even pulleys can be connected. They are equally at home in fall arrest situations or as part of a pre-rigged rescue system. The round basket shape allows any of the connection points to self-centre when weighted - this helps avoid the unnerving click that often happens with a more D-shaped connector. The symmetrical basket mean rotation within systems is not required as they sit comfortably either way round.

Keylock clean nose for snag free connection DMM's patented 'Taperlock' closing mechanism increases gate push-in and cross gate strength using a special flared profile on the nose of the carabiner, as well as allowing a snag free connection for your ropes, slings and devices.

Captive bar option for security Many of our connectors can be supplied cross-drilled to accommodate captive bars. This means that the lanyard or attachment cannot be removed and ensures that the direction of force applied in the event of a fall is along the major axis of the connector, giving maximum strength and holding power. The captive bars themselves are not for load bearing use.

Locking Gate Type
Brochures
Details
Shipping Info
Applications
Technology
Tech specifications
Dimensions Weight MBS (Major Axis) MBS (Minor Axis) MBS (Gate Open) Gate Opening Certification
63 x 109mm 67g 25kN 12kN 7kN 22mm EN362:2004 B
EN12275:2013 X/B
UIAA121:2009
